How much does a folding module cost?

The price of a folding module varies with the number of units, the interior finish and the delivery destination. Importing it directly from the factory gives better value than a module built on site. Request your quote and we reply within 24 business hours.

How many folding modules fit in one truck?

Up to 12 folding modules fit per truck, because they travel folded and take up a fraction of the volume. That sharply lowers the freight cost per unit, especially to remote or hard-to-reach sites.

How long do they take to set up?

Deploying a folding module takes about 15 minutes with two people, with no civil works or foundations. It arrives folded at the site and is operational almost the same day.

Are they suitable for high-altitude camps?

Yes. They have fireproof Class A rock-wool insulation and a Q235B steel structure, with CE / ISO 9001 / SGS certifications, seismic grade 10 and wind level 11. They are built for cordillera weather and extreme cold.

Foldable modules:
the difference is in the transport

12 units per 40'HQ container. Deployed in 15 min with 2 people. Q235B steel, Class A rock wool, CE / ISO 9001 / SGS certifications.

Get a quote See models

Concept

What is a foldable module?

Foldable habitable modules are Q235B steel structures designed to be transported in compact form (360 mm height) and deployed on site in 15 minutes. Up to 12 units travel in a standard truck, reducing logistics costs compared to traditional rigid modules by the same proportion.

12 u.per 40HQ container

15 mindeployment on site

13.4 m²habitable interior

1,100 kgweight per unit

Módulo plegable minería — vista costado, acero Q235B galvanizado

Módulo plegable minería — frente con puerta y ventana antirrobo

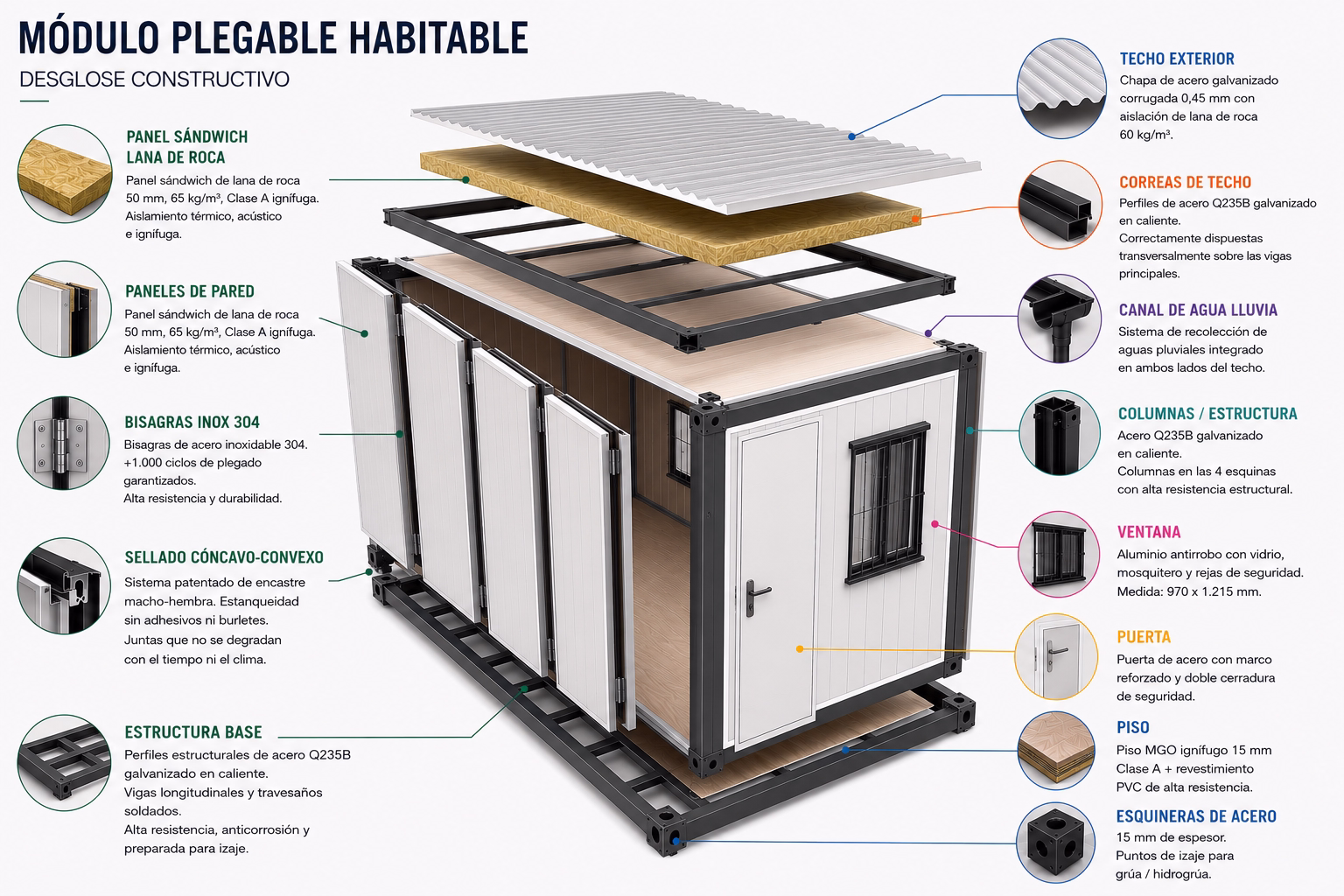

Composición estructural módulo plegable — paneles lana de roca Clase A

Diagrama despliegue módulo plegable — 15 min 2 personas

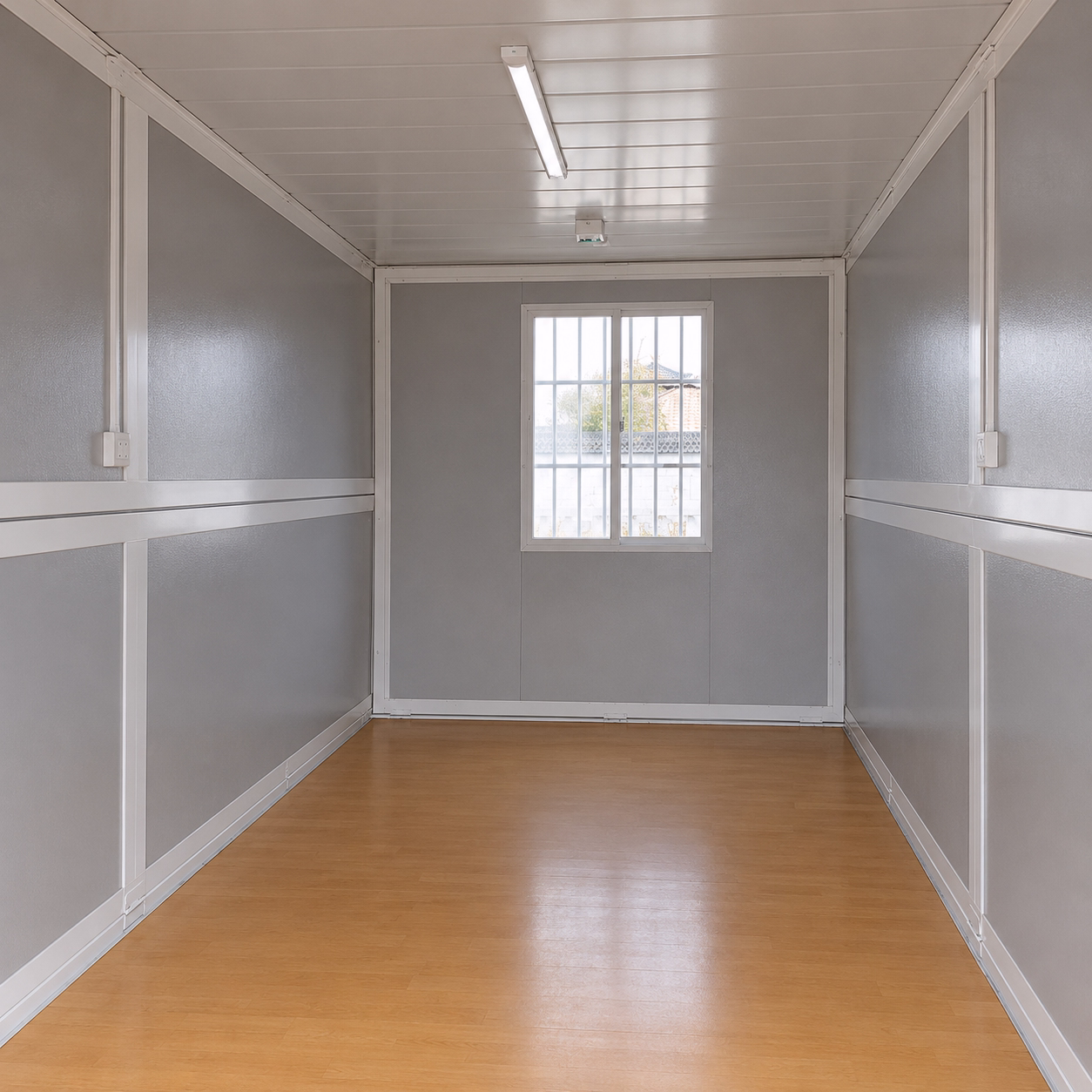

Interior módulo plegable habitable — 13,4 m²

Interior módulo plegable — dormitorio campamento minero

Campamento modular con módulos plegables — minería Argentina

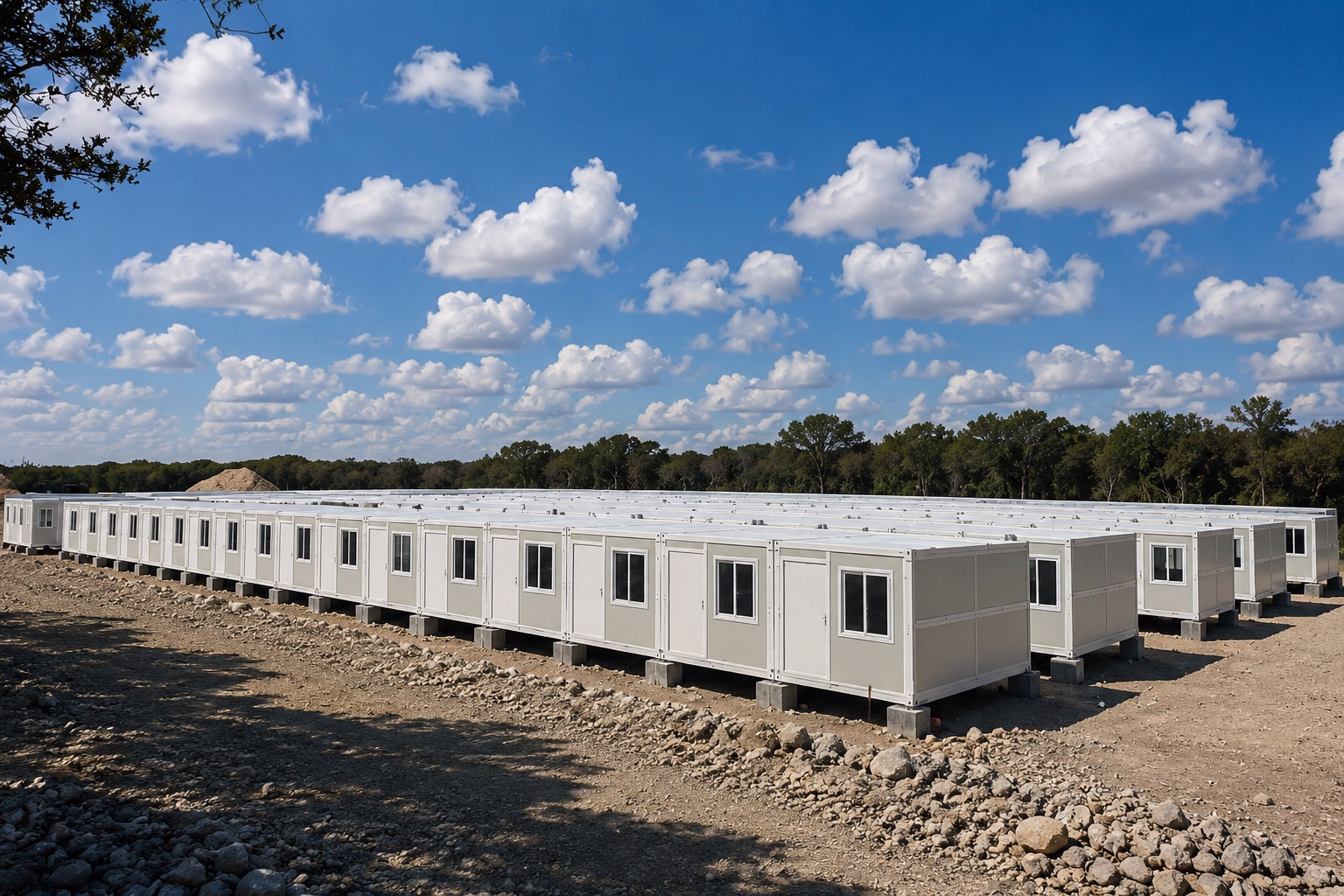

Vista aérea campamento minero modular plegable

Available models

Two lines of foldable modules

Mining Line for remote-zone projects with seismic and thermal demands. Standard Line for construction sites and general use.

Mining Line — Certified CE / ISO 9001 / SGS

Mining Foldable Module

Grade 10 seismic · Class A rock wool · 12 u./40HQ

Quote

Grado 10Seismic resist.

Nivel 11Wind resist.

13,4 m²Habitable interior

12 u./40HQPer container

1 / 8

Designed for field projects: mining camps, oil & gas bases, and high-altitude remote zones. The most robust structure in the line.

Technical specifications

Deployed dimensions

5.800 × 2.500 × 2.390 mm

Folded dimensions

5.800 × 2.500 × 360 mm

Habitable interior

2.370 × 5.635 × 2.265 mm — 13,4 m²

Weight per unit

1.100 kg

Structure

Acero Q235B galvanizado en caliente

Walls

Lana de roca 50 mm · 65 kg/m³ · Clase A ignífuga

Roof

Lana de roca 60 kg/m³ + chapa corrugada 0,45 mm — carga 50 kg/m²

Floor

Placa MGO ignífuga 15 mm (Clase A) + PVC

Window

Aluminio antirrobo con vidrio y mosquitero — 970 × 1.215 mm

Door

Acero con doble cerradura de seguridad

Sealing

Sistema cóncavo-convexo patentado (sin adhesivos)

Hinges

Acero inoxidable 304 — +1.000 ciclos de plegado

Seismic resistance

Grado 10

Wind resistance

Nivel 11 (100–120 km/h)

Stacking

Hasta 3 niveles

Electrical system

Cableado + tomas + luminarias LED incluidos

Certifications

CE / ISO 9001 / SGS

Deployment

15 min con 2 personas + grúa

Units per 40HQ

12 unidades

Service life

15 a 20 años

Standard Line — CE / SGS

Standard Foldable Module

Versatile and affordable · Construction · General use

Quote

Grado 9Seismic resist.

~108 km/hWind resist.

50 kg/m²Roof load

14 u./40HQPer container

Módulo plegable estándar — línea económica

1 / 5

Economical solution for construction sites, camps, field projects, and private use. Quick deployment and maximum logistics efficiency.

Model FC-01. Wind and seismic performance subject to anchoring to foundation and correct installation. Warranty per supplier conditions.

Technical specifications

Deployed dimensions

5.800 × 2.460 × 2.420 mm

Folded dimensions

5.800 × 2.460 × 330 mm

Weight per unit

~1.000 kg

Structure

Acero galvanizado modular plegable

Wall insulation

Panel EPS 10 kg/m³

Roof insulation

Lana de vidrio

Floor

Placa MgO ignífuga 18 mm

Electrical system

Térmica 20A + cableado + tomas + LED

Certifications

CE / SGS (según fabricante)

Units per 40HQ

14 unidades

Real video

The foldable module in action

The module is transported with the walls and roof folded over the base. On site, two people deploy it in minutes without construction tools.

15 min

Total deployment

From folded to habitable in 15 minutes with a crane.

2 people

Required crew

No construction crew needed. Two operators and a crane.

No works

Tools

No welding, scaffolding, or wet construction required.

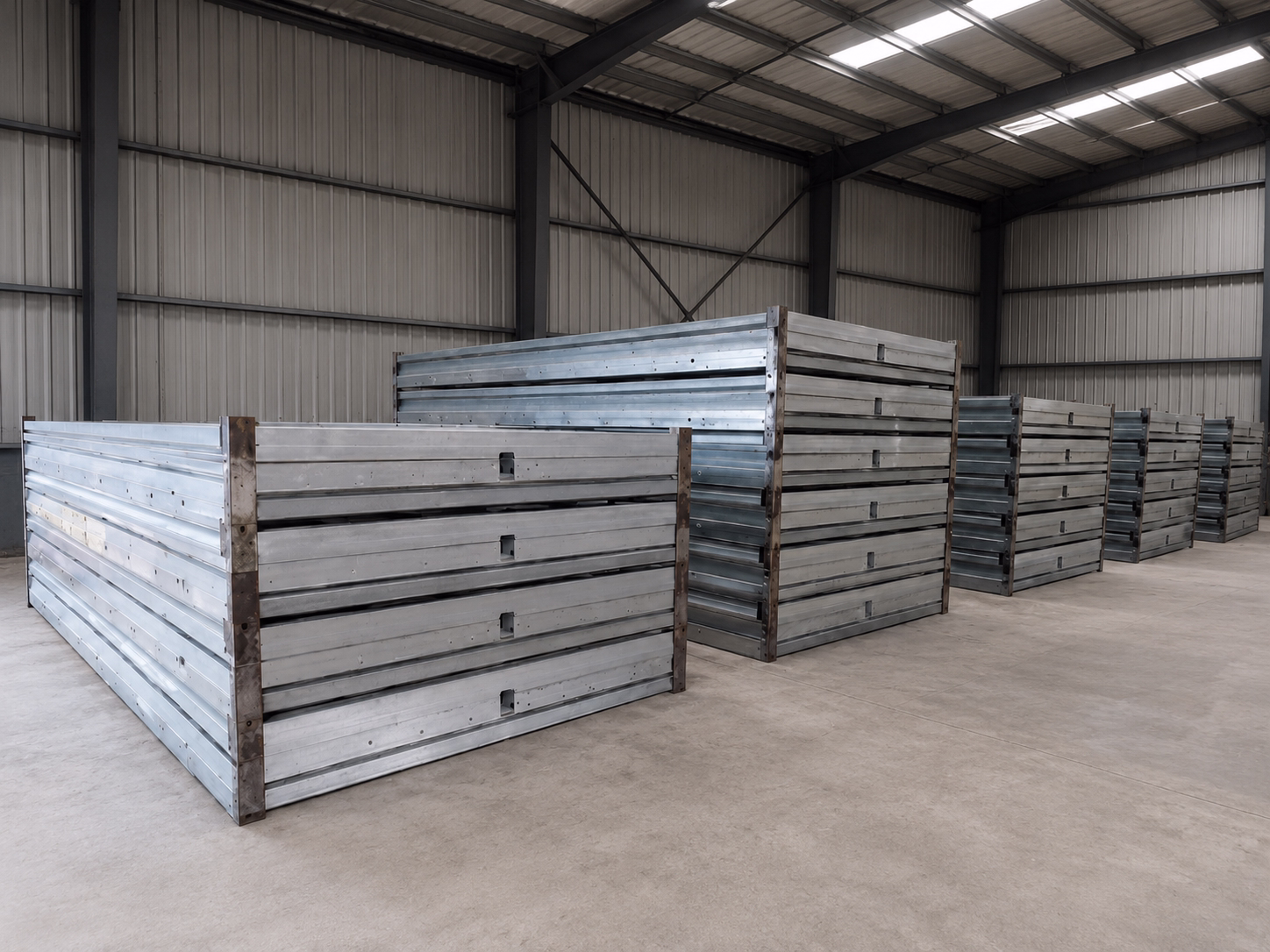

360 mm

Folded height

Fits in a standard truck when folded. 12 u. per 40HQ.

Logistics advantage

Up to 12 units per 40-foot container. Lower volume per transported unit. With our own fleet we coordinate transport to site anywhere in the country.

Uses in camp

Bedrooms, offices, dining hall, and services, depending on the chosen configuration.

Bedroom

Office

Dining hall

Infirmary

View complete mining camps →·View bathrooms & showers →

What does each spec mean?

Specifications explained

Rock wool

We don't use EPS (styrofoam). It's Class A fire-rated: it doesn't spread fire. Insulates against cold and high-altitude noise.

Grade 10 seismic

Scale 1 to 12. Grade 10 withstands very high-intensity earthquakes, above what is required in Argentine seismic zones.

Wind Level 11

Withstands gusts of 100–120 km/h. Designed for Zonda winds and high-altitude conditions.

Galvanized Q235B steel

Zinc-coated structure. Protects against rust and corrosion in environments with snow and extreme humidity.

MGO floor

Magnesium oxide: non-combustible mineral (Class A). Doesn't swell with water or warp in the cold.

Concave-convex seal

Patented mechanical interlocking, without adhesive or gaskets that degrade. Permanent weather-tightness.

Stainless 304 hinges

Surgical steel, +1,000 fold cycles. Rust-free. One fold per week = over 19 years of service life.

15 min with crane

Crane required for lifting. The full process takes 15 minutes with 2 people once in position.

CE Marking

Compliance with European safety standards

ISO 9001

Certified quality management system

SGS

SGS Certified

Independent international inspection and certification

12M

12-Month Warranty

Structure · folding · panels · sealing

Payment: 50% on confirmation + 50% before shipment. 12-month warranty on structure, folding mechanism, panels, and sealing. We respond in under 24 business hours.

Zones where we deliver

San Juan · High altitude Vaca Muerta · Oil & Gas Mendoza · Operations base Catamarca · Lithium Salta & Jujuy · Puna

Frequently asked questions

What clients ask us most

The price of a folding module varies with the number of units, the interior finish and the delivery destination. Importing it directly from the factory gives better value than a module built on site. Request your quote and we reply within 24 business hours.

Need foldable modules for your project?

We respond in under 24 business hours.

Request a quote Contact via WhatsApp
